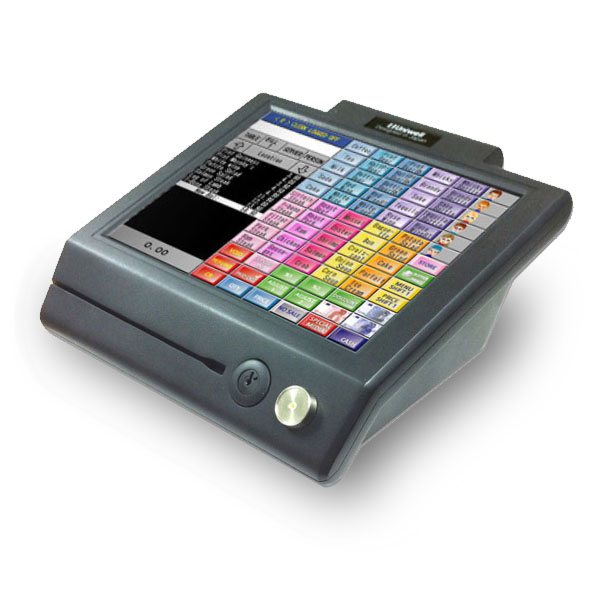

DX-795, High performance low cost touch screen POS General Retail & Simple Food Service
Introducing an entry level Touch Screen POS with reliable Uniwell Embedded Technology in a compact cabinet. Low cost yet high performance suggestion to the business, such as general retail and simple food service, currently using cash registers.
DX-795 Remarks
- Touch Screen: Very durable 5-wire resistive touch screen with 10.4" color display.
- LCD: LED & SVGA made the screen more vivid and quickly becomes brigther. It allows on-off in a short time, which is very energy saving to the user.
-
Dimentions & Weight:
(L) 265mm approx. 2.5kg
(W) 260mm
(H) 109-139mm - Its lightweight and compact size contribute saving CO2 as it reduces carbon dioxide emissions during transport and packaging materials.
Key Features for Retail and Hospitality
Retail Features
- Scanning - A standard scanner interface port provides the facility to connect a wide choice of different scanner types - from hand held through to fixed mounted. The DX-795 supports both source marked and in-store codes including EAN 8, EAN 13, UPC-A, UPC-E, weight and price embedded, add-on 5 and ISBN.
- Customer Loyalty - Using the Fidelity Total Loyalty software retailers can run their own in house loyalty schemes just like the major high street retailers.
- Easy to Add New Items - When scanner finds a not registered item, operator will be asked to create as a new item. Instead of entering the all info from scratch, a new item can be quickly created by duplicating a master item that has many common data, and then changing only unique data (such as name and price).
- Mix and Match - Eleven kinds of Mix & Match plans are available. It will provide wide range of discount offers to the customer, who can choose the item of their preferences. ex. Buy two and get third item free etc.
Hospitality Features
- Combo Menu - Creating a transaction by single button as a set menu, but with original price data of each composing PLU and discounted amount of especially coupon for a set menu. Therefore, precise stock/sales control is possible.
- Customer File - Up to 9999 customers' TEL number, VAT #, name, address can be recorded. Very convenient when issuing the bills, especially for delivery service etc.
- Customer Invoice - Offers a frequent customer with a decent invoice for a certain period of a week, a month or so with details of transcations, convenient for hotel, company's cafeterias, etc.
- Table Plan - Complete table management covering multiple locations and different range of tables per clerk. Table status can be known by color - reserved, seated, ordered, check-out bill issued, paid, cleaning, vacant.
- Real Time Stock Control by Group/PLU - In Ethernet IRC network (Uninet), Real-Time Stock Control among multiple ECRs is available.

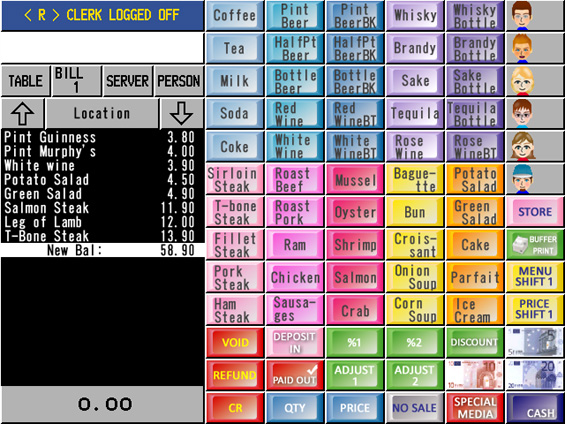

##DX-795 screen image
(*Optional memory required for graphical buttons)

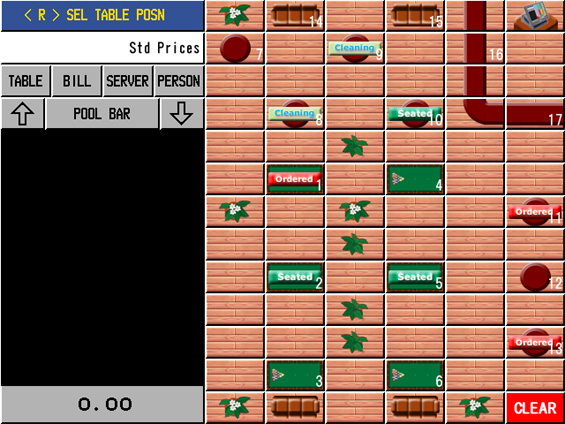

Graphical Table Plan: Different layout is available for up to 8 locations.

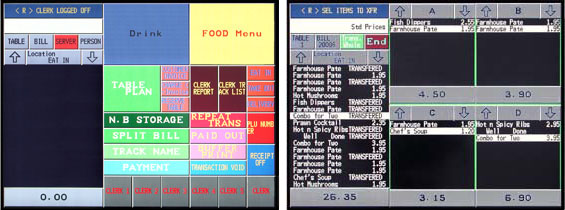

DX-795 software type-03 screen image (Standard)

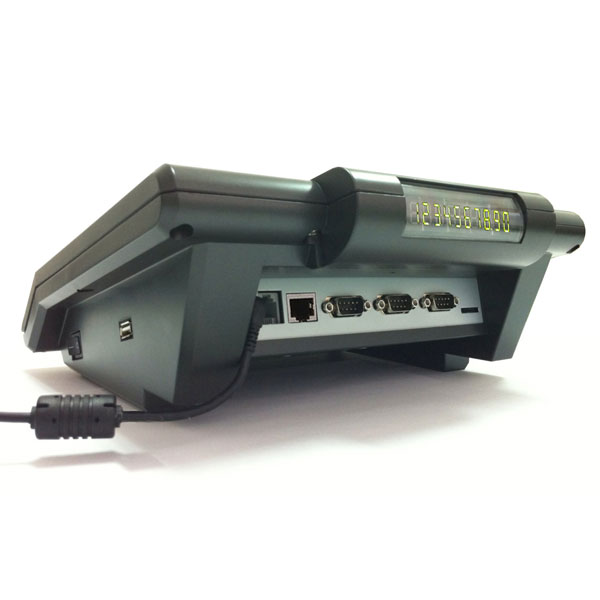

Interfaces
Port | Cable | For |
---|---|---|
UNINET | ETHERNET | High Speed IRC [SF-45.C=YES] IRC kitchen printer server Local receipt server FTP comm. with PC (Tensai2000, PLM 2000) IRC report, flash ROM update, program maintenance Room, Loyalty UDP data streaming with PC Journal data / EJF data monitoring and analysis |
B | RS232C | PLM 2000, Tensai2000 (PC batch comm, PC-IRC comm, modem, hotel PMS, loyalty, etc.) or one of the devices as ch-C port |
C / D | RS232C | One or Two of: - Local receipt printer (3rd party printer) - Local slip printer - Scanner - Scale - 2-line dot matrix customer display - EFT Terminal - Remote operation device - Journal data transfer - Cashless devices |
SD / USB | Program data from/to USB memory Firmware update from USB memory |
|
Drawer 1 & 2 | RJ11 | 1st & 2nd Drawers |
Options
- Card Reader
- iButton for quick clerk sign on

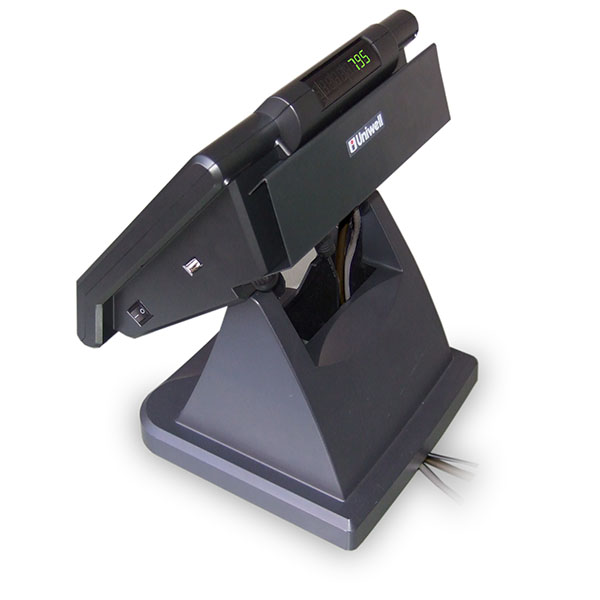

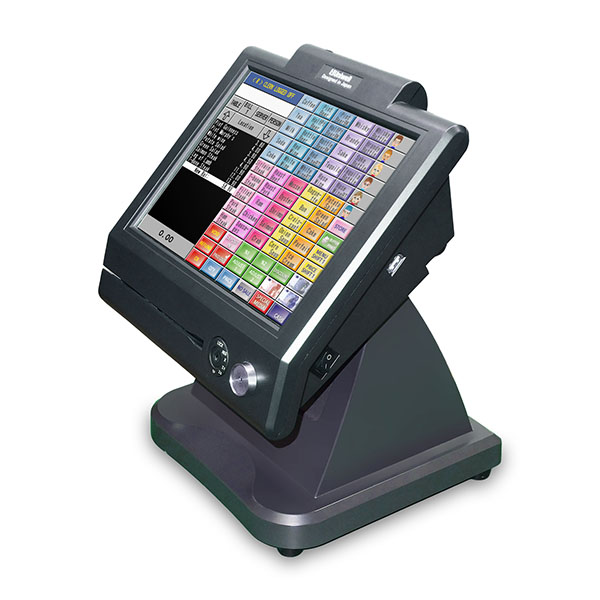

- Base unit
- Interface cover
- Optional memory
