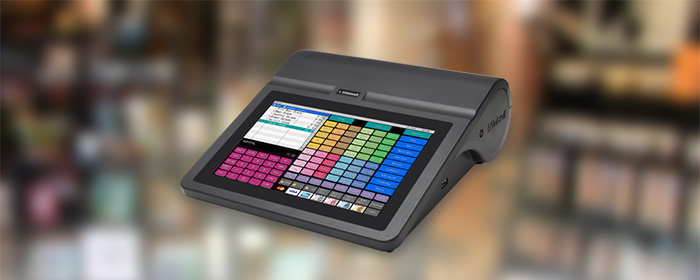

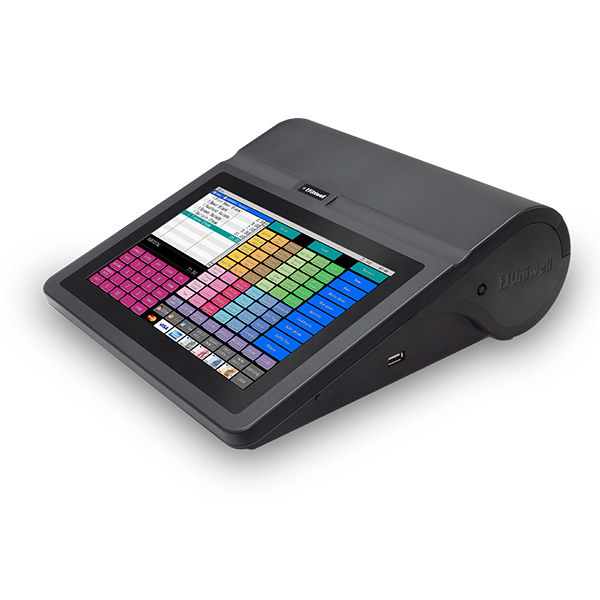

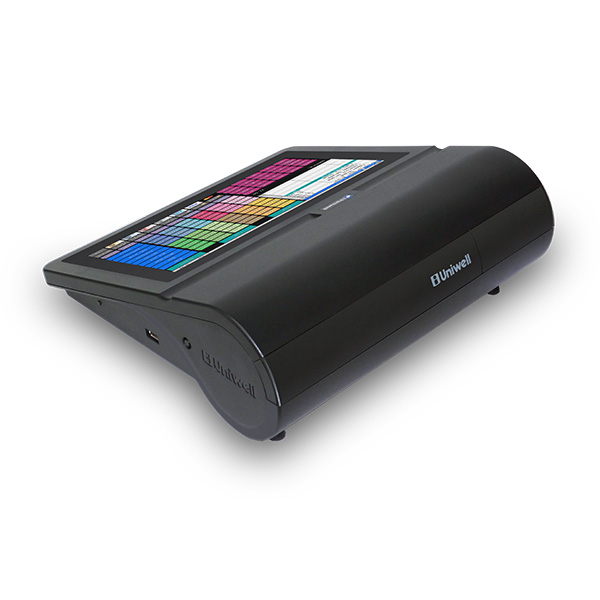

HX-2500 – Compact embedded touch screen POS
This purpose-built 10.1” touch screen POS terminal is set to change the compact POS landscape, with an incredibly powerful feature-set that lends itself to hospitality and food retail venues of all shapes and sizes.
Consider the following benefits of the HX-2500 to your business:
Compact, yet powerful – With a 10.1” bezel-free, capacitive touch screen, the HX-2500 is as responsive as any tablet POS system. Uniwell has over 40 years of experience designing and building POS hardware that has earned the reputation of being robust, reliable and easy to use.
Fast & secure – Our proprietary software and solid state hardware provide high speed processing and operation, along with greater stability and security. Technician support is also made easier with our remote access and remote maintenance features.
Advanced hospitality features – The HX-2500 is at home in any hospitality environment, with features including advanced kitchen printing, table maps and tracking, powerful condiment control, automated meal deals and other promotions.
Large capacity – With a capacity for up to 50,000 PLUs, the HX-2500 becomes a neat retail scanning option. The internal memory capacity allows Journal Data to be stored for an extensive period.
Peripheral options – Being compatible with the existing members of Uniwell’s HX series POS terminals, the HX-2500 integrates with our Phoenix II handheld order-taking system, back-office software options, kitchen video displays and much more.
We encourage you to consider the HX-2500 – ‘Compact POS Without Compromise’!
HX-2500 Features
- Hardware Features
10.1" bezel-free and true-flat touch screen display with enhanced splash-proof performance
Capacitive touch screen with superior durability
Graphic LCD Customer Display support
Increased internal memory
CashGuard interface (cash recycle/cash dispenser)
Caller ID interface (telephone ordering system)
Portable storage devices (USB) - Table Management
Table tracking with floating track capability
Extensive condiment items for meal options
Cooking instruction features
Handwritten cooking message
Powerful kitchen printing facilities
Split bill functionality by item or seat
Checkout bill
Deposit
Graphic table maps - QSR and Fast Food
Customized receipt
Extensive topping
Take out/eat-in system with combo menus
Drive through
Web ordering system integration - Retail
Various promotion types including
Mix and Match, Meal Deals, Coupons and more
Stock control
Weight/Price embedded barcode and source marking code
Integrated scale features - Customer Management
Customer account tracking
Simple loyalty features
Room/Loyalty
Mifare card (RFID card) Customer Loyalty - Other Features
Extensive internal reporting options
Electronic journal storage
Remote maintenance facility
Integration with back-office POS management and reporting software
And more!

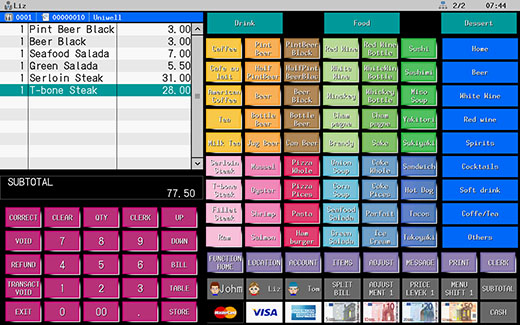

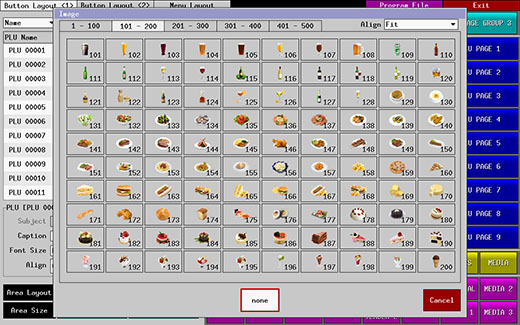

Screen image of HX-2500 software type-03 (Example with some graphical buttons)
Built-in graphical buttons are customizable by BMP file.

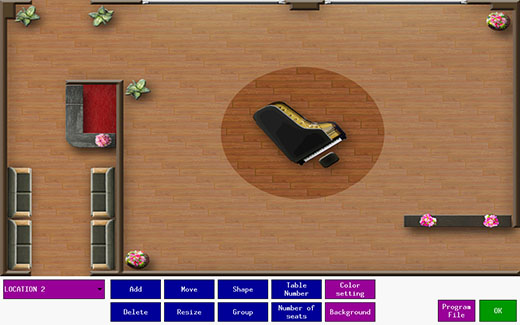

Graphical Table Plan: Different layout is available for up to 8 locations.

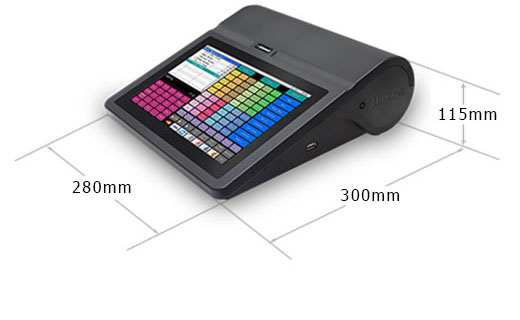

Dimensions :
W280 X D300 x H115
Net weight :
2.0 kg

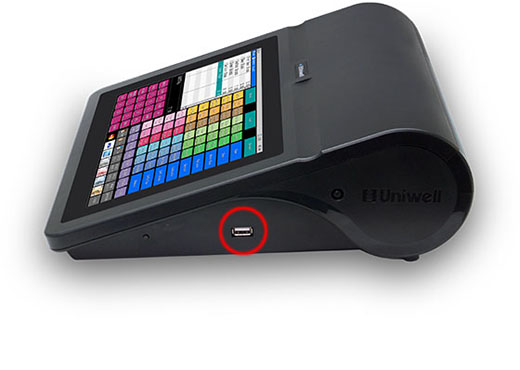

Easy access to USB port

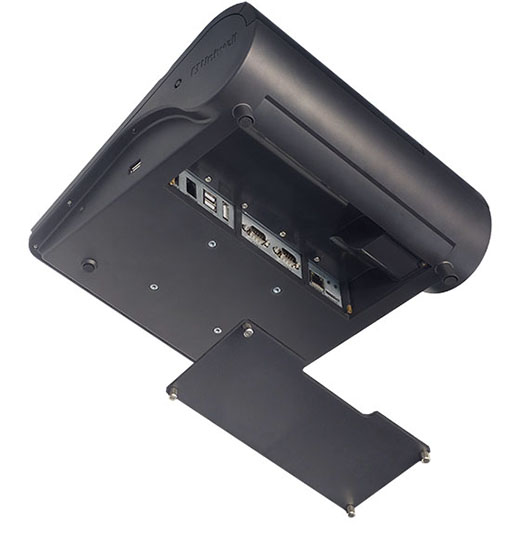

Interface connector
I/O port is conveniently set-out for your easy connection

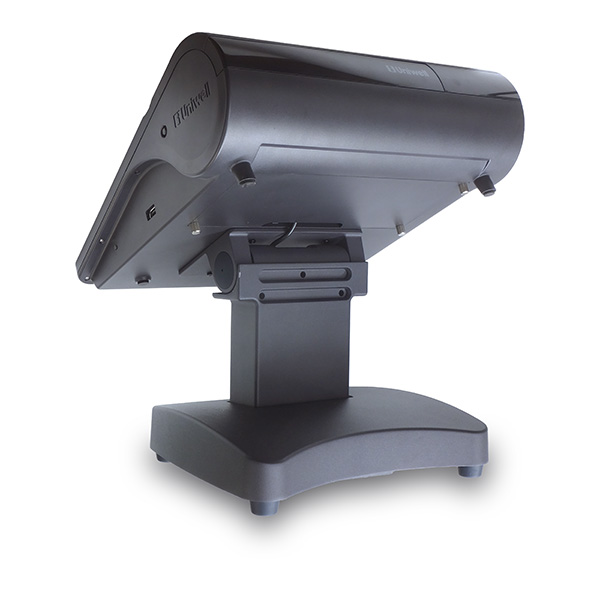

VESA Mounting
HX-2500 has VESA Mounting Interface Standard MIS-D75,
75 mm X 75 mm, M4

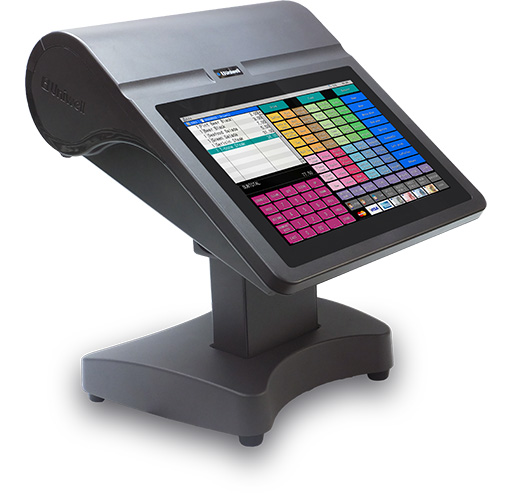

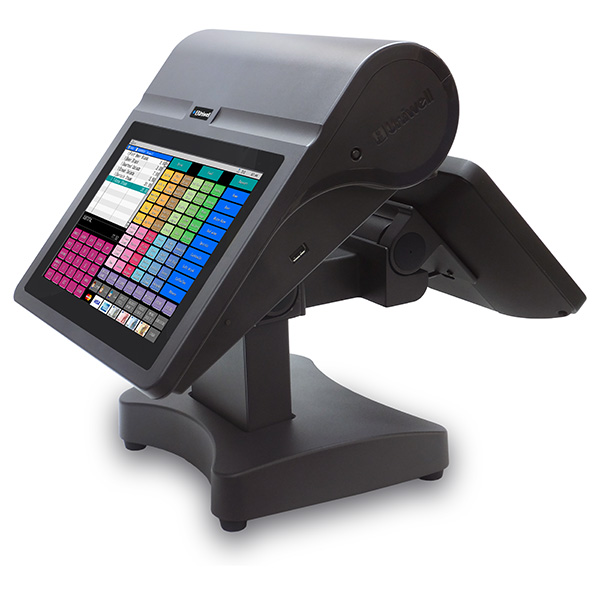

Option: POS stand

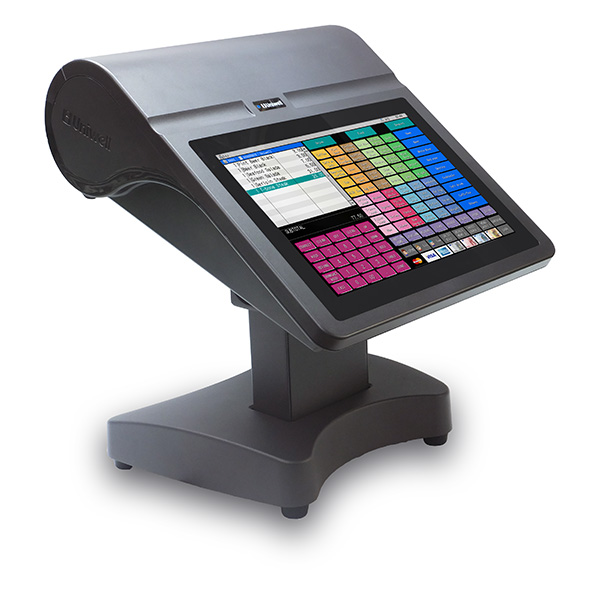

Option: POS stand
Option: POS stand Arm

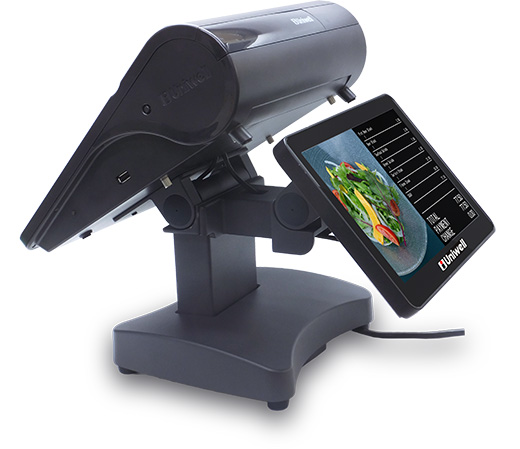

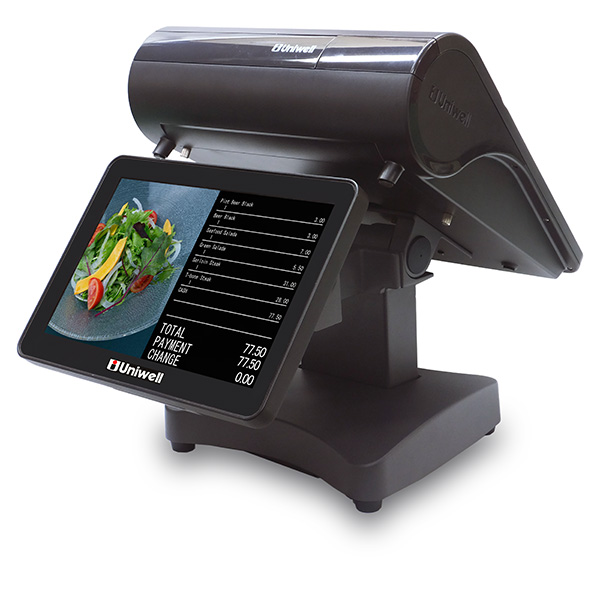

Option: Customer LCD display
DP101A-U (USB/10.1 inch TFT display)

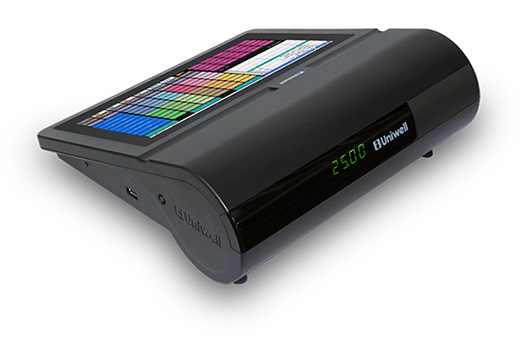

Option: Customer Display
(1line, 7segment LED: 12digits)
Interfaces
| Port | Cable | For |
|---|---|---|
| ETHERNET | LAN | PC (real time data streaming) Printer (kitchen, receipt, slip) Caller ID EFT terminal NFC terminal 2 line customer display/customer LCD Barcode scanner Scale Journal data transfer Room transfer Coin note recycler Drink dispenser etc. |
| COM 1-2 | RS232C | PC (real time data streaming) Printer (kitchen, receipt, slip) Caller ID EFT terminal NFC terminal 2 line customer display/customer LCD Barcode scanner Scale Journal data transfer Room transfer Coin note recycler Drink dispenser etc. |
| USB x 4 | USB | PC keyboard Mouse Barcode scanner USB memory LCD graphic customer display RFID reader Biometric scanner (Finger print reader) |
| micro SD Card | Data backup Control data and graphic image for ''LCD graphic customer display'' |
|
| Drawer1&2 | Rj11 | 24V drive, one connecter for the two drawers with open sensor |
Options
- iButton for quick clerk sign on
- Customer display (1line, 7segment LED: 12digits)
- Customer LCD display DP101A (USB/10.1 inch TFT display)
- 3rd Party Option - MicroPlus (Kitchen Video Display System)
- 3rd Party Option - UniOrder (Web/Mobile ordering solution)
Back Office Modules
- ePOS Office Lite (Back office software: Free)
- ePOS Office (Back Office Software for sales analysis and stock control)
- ePOS central (Central back office software for sales analysis and stock control)
- Uniwell Lynx (Back Office Software for sales analysis and stock control)
