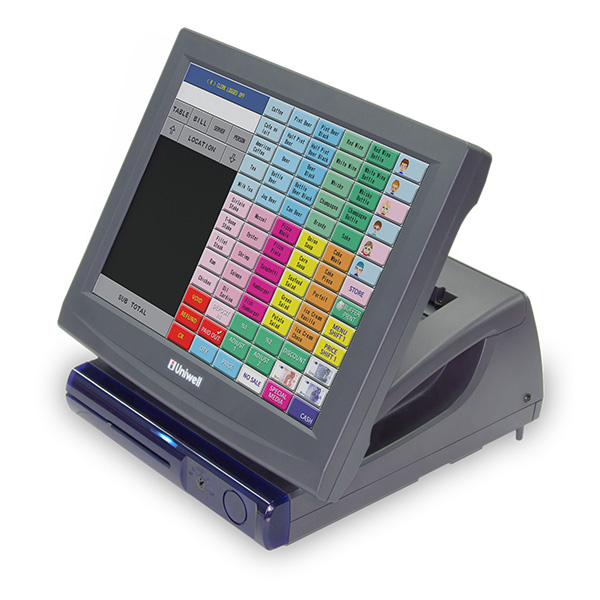

DX-915
The DX-915 brings you the highest quality of ROM-based touch screen solutions that you have ever wished for.
15 inch touch screen LCD display, more connectivity with variety of interfaces, and top performance of the software programs with expanded memory will perfectly fit into the current complexity of hospitality and quick service operations.
Through the spirit of customer-friendly mechanism and operation, your business management will never be more ideal and successful without the Uniwell DX-915.
DX-915 Features
- 15" color TFT touch screen display
- Round or normal edge button selectable
- Large or normal font selectable
- Built-in stock control with re-ordering level through terminals in IRC. (2 kinds of stock control methods are available: PLU stock control and Grouped stock control.)
- Table Plan for table/room management (can be linked to Customer Invoice)
- Customer Invoice for issuing periodical invoice with customer's information printed
- Uninet(Ethernet) with 10Mbps access for rapid report/data polling, program update and data transfer between PC, kitchen printers and other ePOS terminals in a network.
- TCP/IP protocol and FTP functions
- Time and Attendance Labor Cost
- 255 Mix and Match Categories
- PS/2 keyboard attachable
- Screen Saver

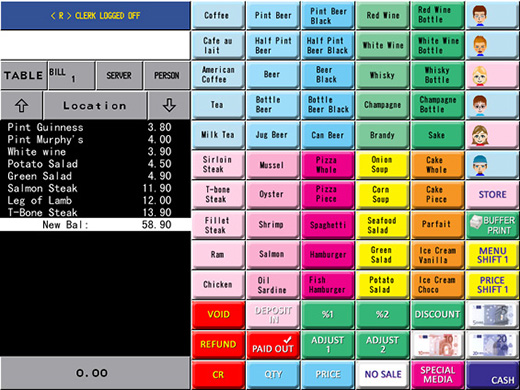

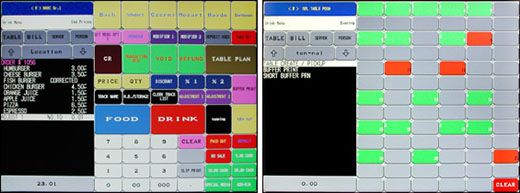

DX-915 software type-03 screen image
(*Optional memory required for graphical buttons)

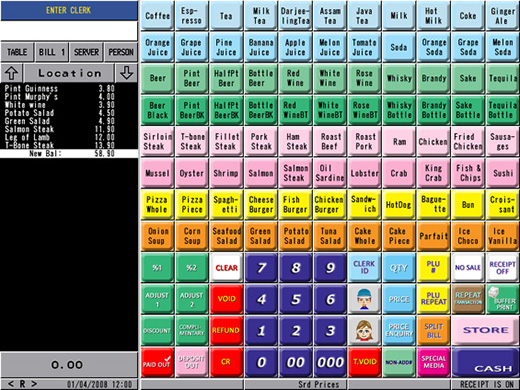

DX-915 software type-10 screen image
(*Optional memory required for graphical buttons)

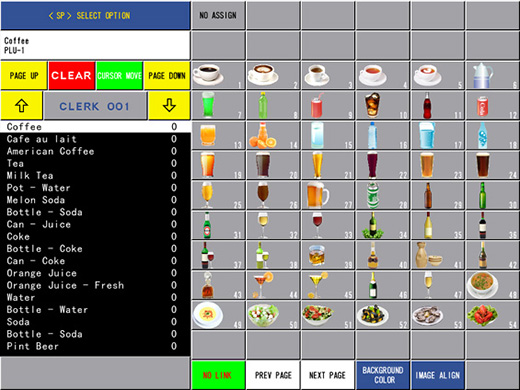

Built-in graphical buttons are customizable by BMP file.
(*Optional memory required for graphical buttons)

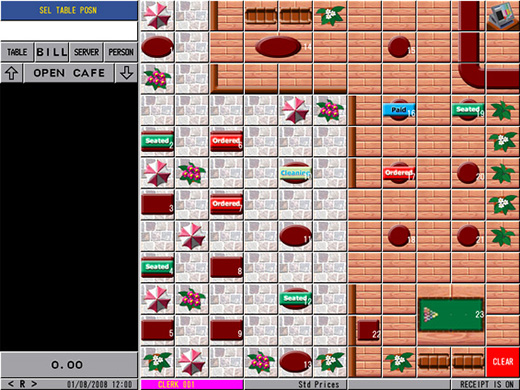

Graphical Table Plan: Different layout is available for up to 8 locations.
(*Optional memory required for graphical buttons)

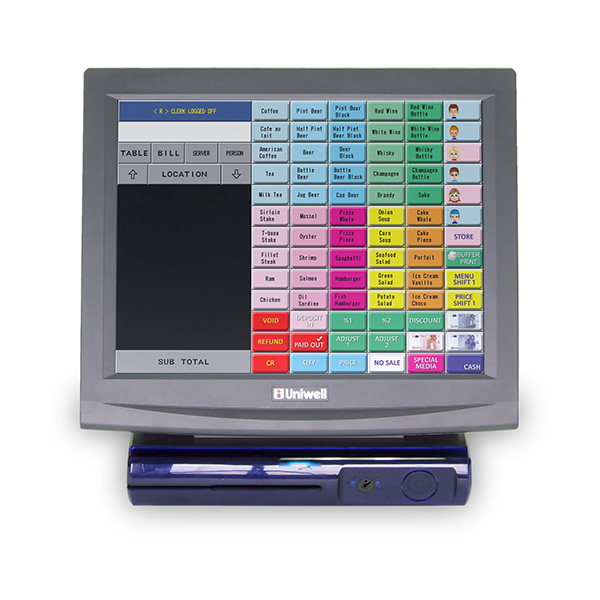

DX-915 software type-03 screen image (Standard)

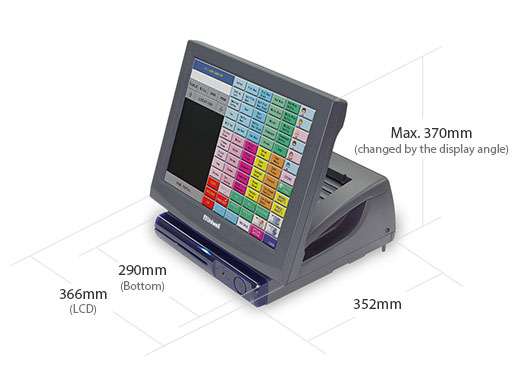

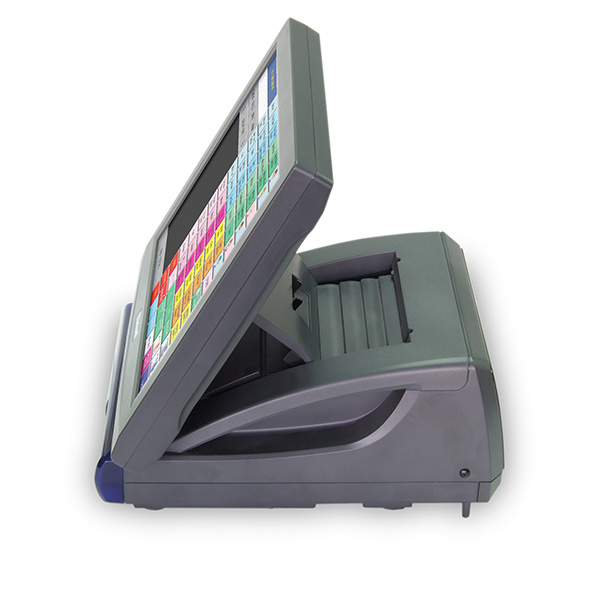

Compact size

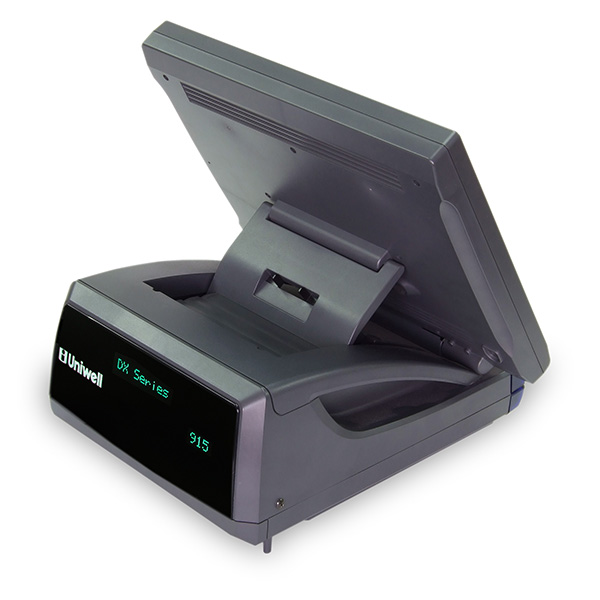

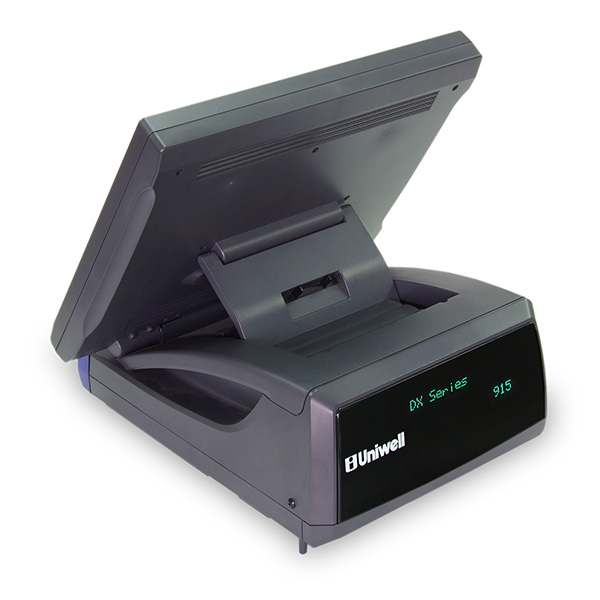

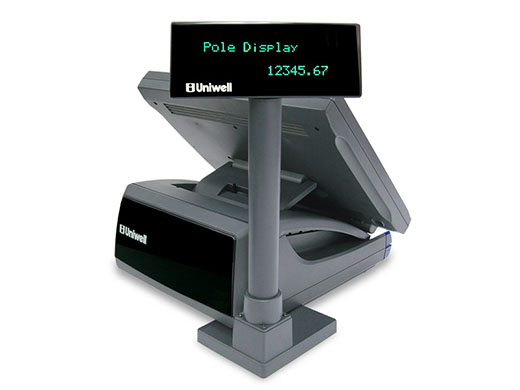

Pole Display (*Option)
Interfaces
| Port | Cable | For |
|---|---|---|
| UNINET | ETHERNET | High Speed IRC IRC kitchen printer server Local receipt server FTP comm. with PC (Tensai2000, PLM 2000) IRC report, flash ROM update, program maintenance UDP data streaming with PC Journal data / EJF data monitoring and analysis |
| A | RS485 | IRC : max. 32 terminals Receipt/Kitchen printer (max. 8) Slip printer (max. 8) |
| B | RS232C | PLM 2000, Tensai2000 (PC batch comm, PC-IRC comm, modem, hotel PMS, loyalty, etc.) or one of the devices as ch-C port |
| C | RS232C | One of: - Local receipt printer - Local slip printer (PC printer) - Scanner - Scale - Journal data transfer - Remote operation device - Cashless devices |
| D | RS232C | Same as ch-C port |
| E (Option) | RS232C | Same as ch-C port |
| F (Option) | RS232C | Same as ch-C port |
| Drawer 1 & 2 | RJ11 | 1st & 2nd Drawers |
| Keyboard | PS/2 | PC Keyboard |
Options
- Card Reader
- iButton for quick clerk sign on
- Pole Display
- Optional memory board
- Optional interfaces board
