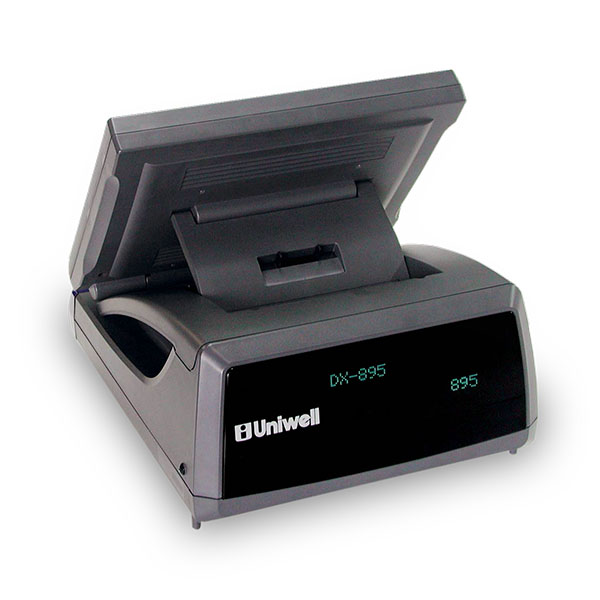

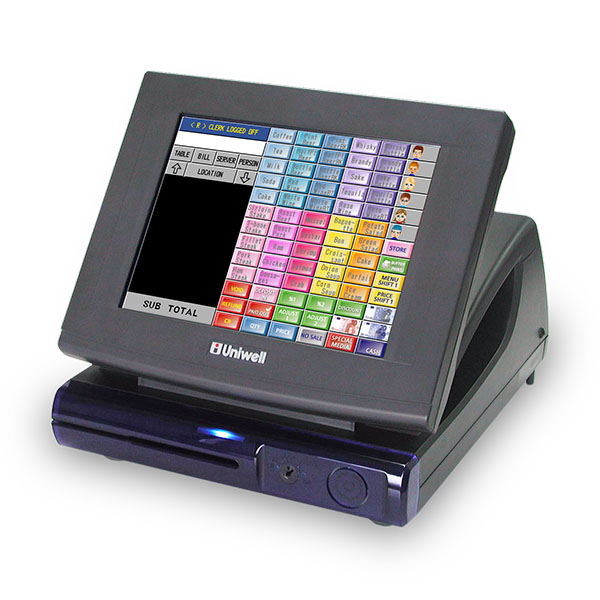

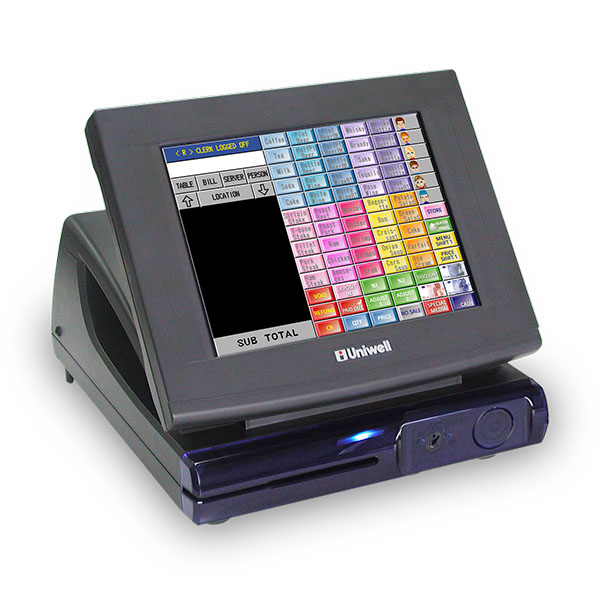

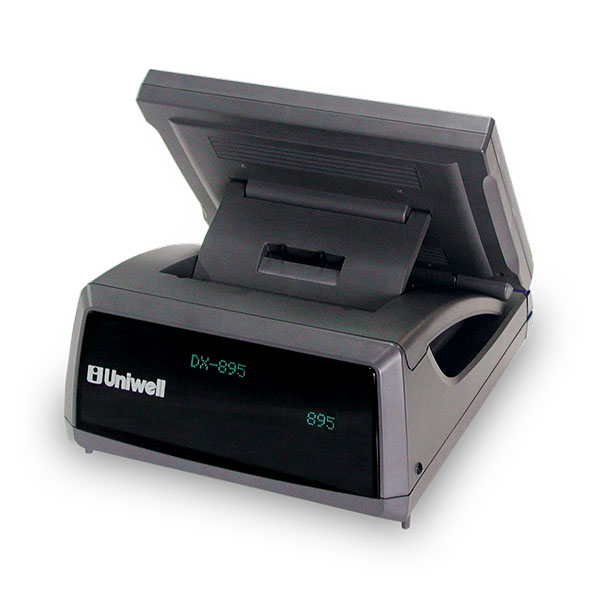

DX-895

The TX series' advanced software is packed into the DX-895 luxurious compact body which shows its top end position in Uniwell products range with its standard Uninet(Ethernet) function.

• DX-895 Brochure

  pdf opens in new tab

DX-895 Features

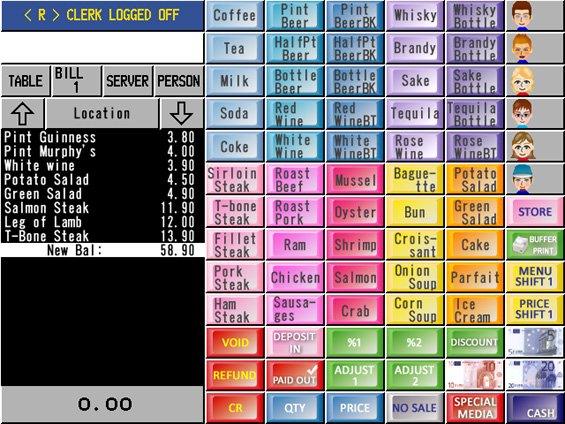

• 10.4" color TFT touch screen display
• Display angle adjustable
• Front Control Panel LED light
• Built-in stock control with re-ordering level through terminals in IRC. (2 kinds of stock control methods are available: PLU stock control and Grouped stock control.)

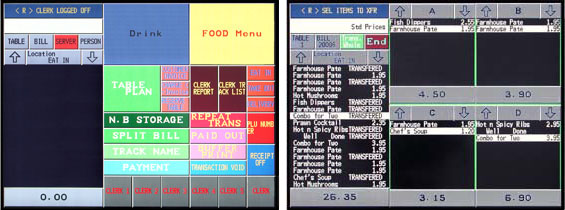

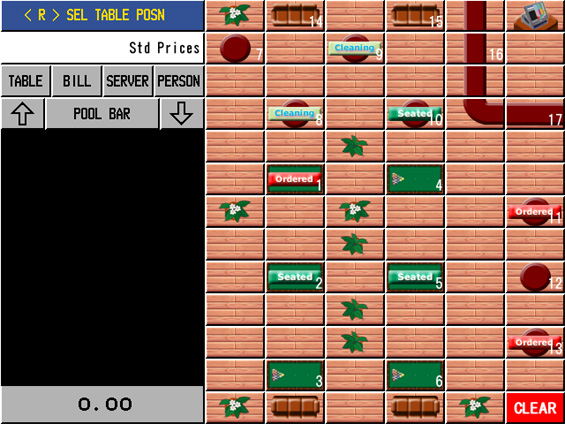

• Table Plan for table/room management (can be linked to Customer Invoice)
• Customer Invoice for issuing periodical invoice with customer's information printed
• Uninet(Ethernet) with 10Mbps access for rapid report/data polling, program update and data transfer between PC, kitchen printers and other ePOS terminals in a network.
• TCP/IP protocol and FTP functions
• Screen Saver

---

Interfaces

Port	Cable	For
UNINET	ETHERNET	High Speed IRC IRC kitchen printer server Local receipt server FTP comm. with PC (Tensai2000, PLM 2000) IRC report, flash ROM update, program maintenance UDP data streaming with PC Journal data / EJF data monitoring and analysis
A	RS485	IRC : max. 32 terminals Receipt/Kitchen printer (max. 8) Slip printer (max. 8)
B	RS232C	PLM 2000, Tensai2000 (PC batch comm, PC-IRC comm, modem, hotel PMS, loyalty, etc.) or one of the devices as ch-C port
C	RS232C	One of: - Local receipt printer - Local slip printer (PC printer) - Scanner - Scale - Journal data transfer - Remote operation device - Cashless devices
D	RS232C	Same as ch-C port
E (Option)	RS232C	Same as ch-C port
F (Option)	RS232C	Same as ch-C port
Drawer 1 & 2	RJ11	1st & 2nd Drawers

Options

• Card Reader
• iButton for quick clerk sign on
• Pole Display
• Optional memory board
• Optional interfaces board

Back Office Modules

• Tensai 2000 (program loader/IRC report, PC-IRC communication)
• PLM 2000 (program loader, one to one communication)
