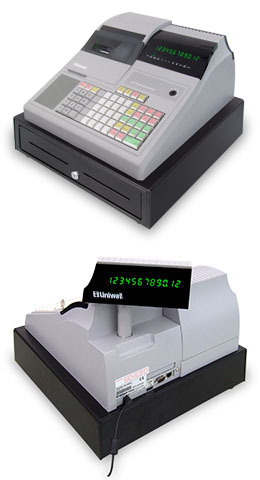

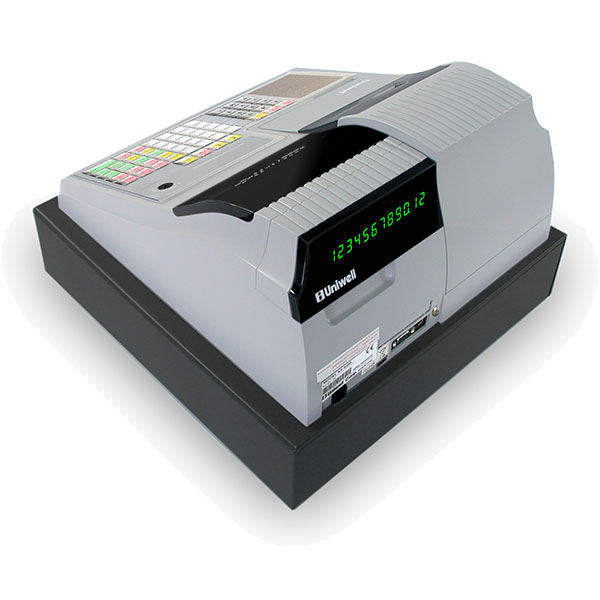

NX-5400 series
NX-5400 01 type, High performance at low cost! Scanning?! So many PLUs?! Communication?! - All Possible!!!
NX-5400 is a low cost machine made for general retail stores and various simple hospitality industries such as Food Court, Small Restaurant, Takeout Shop including Fast Food, etc.
You will find extraordinary features for this kind of model range, such as Scanning function, PC communication, Inter Register Communication (IRC), Large PLU files, Amount Track, 98 group-A's, 25 group-B's + 10 main group-A's. These are not option, but all STANDARD!
Supported by convenient programming tool "PLM 2000", you can start to use NX-5400 on the day of delivery!
Printer
2 sheet dot matrix printer, 3 lines/sec
Receipt/Journal: 24 columns/line
Validation: 55 columns/line
Paper roll: 44.5 ± 0.5 mm x Φ83 mm
Keyboard
Stroke key: 58 key positions / Flat key: 128 key positions
Front Display / Rear Display (7segment LED)
12 digits numeric x 1 line
Dimensions
405 (W) x 423 (D) x 277 (H) mm with drawer
IRC (Inter Register Communication)
- 32 ECRs
- 4 kitchen printers
- 4 slip printers
- PC communications with Tensai2000 via NA-700
NX-5400 Features
- Standard 4,452 PLUs (Standard/Max.)
- 127 Hard PLU keys
- Scanning system with 14 digits random PLU code
- 98 group-A's, 25 group-B's and 10 main group-A's
- 23 cashiers and 15 hard cashier keys
- 1,820 amount tracks
- Simple condiment PLU entry with a main PLU
- 2 menu shift keys allow use of 3 menus
- 8 stock calculation constants make inventory easy and exact
- 4 PLU commission rates
- Single ticket / combined ticket function
- 5 media keys including foreign currency media and Euro function
- 4 arrangement keys 50 key steps
- Other available keys tip, recall, adjustments, cooking message, etc.
Interfaces
| Port | Cable | For |
|---|---|---|
| A | RS485 | Inter Register Communication, Kitchen printer, Slip printer |
| B | RS232C | One of: PC communication, Scanner, RAM data transfer, Journal data transfer |
